System Centre Configuration Manager 1906

Step by Step guide on how to update to SCCM 1906​

SCCM 1906 upgrade

Hi all, Microsoft has just recently released their latest iteration to SCCM, version 1906. With this update of SCCM comes quite a few welcome features and to find out more go to this link on the Microsoft site.

But you are here to see how easy it is to upgrade your SCCM to the current branche 1906.

So let’s get started on the upgrade process for SCCM 1906.

  1. As always when performing any upgrades, make sure that you have a good known valid backup or snapshot of the servers you are targeting. Once you have confirmed you have both or either of these in place, open your SCCM console with your SCCM administration account.

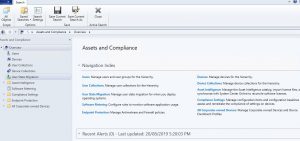

    SCCM Console Main Window

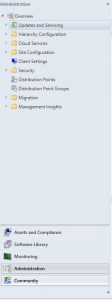

  2. Now click on Administration then highlight Updates and Servicing.
    SCCM Administration Pane


  3. Now in the main Window you should hopefully see the SCCM 1906 update is Ready to Install. If not, click on Check for Updates and allow for sometime for SCCM to download the latest branch update from the Microsoft site. Remember to refresh your window as it wont show up automatically.SCCM 1906 download ready

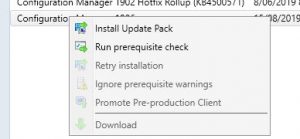

  4. As you can see from the prior picture, our environment has the SCCM 1906 update all ready to install and that our previous SCCM 1902 updates had been installed. First thing we need to do is to Run prerequisite check. Highlight the Configuration Manager 1906 update, right click and choose Run prerequisite check.SCCM 1906 Run Prerequisite Check

  5. This check will take a little time, you can see the status of the check by refreshing the window.
    SCCM 1906 checking prerequisites

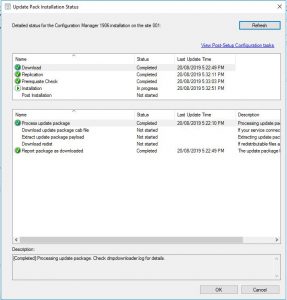

    You can also select Monitoring in the SCCM console Window, navigate to Updates and Servicing, highlight the Configuration Manager 1906 update, right click that and choose show status for a more detailed display of the status of the prerequisite check of SCCM 1906.
    (now this may take sometime to allow the 1906 upgrade to confirm that your SCCM environment is ready for the install, so always be patient)
    SCCM 1906 checking prerequisites detailed
  6. OK, hopefully your SCCM environment passed all the checks to confirm it is ready for the SCCM 1906 installation. Now go back to the Administration and you should see that the Prerequisite Check Passed for the Configuration Manager 1906 update as below.
    SCCM 1906 checking prerequisites passed
  7. Now to the gritty stuff, we are ready to start the upgrade process for SCCM 1906. Again, highlight the Configuration Manager 1906 update, right click and choose Install Update Pack.SCCM 1906 install update pack

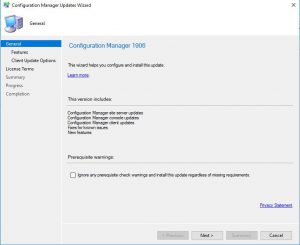

  8. You are now presented with the Configuration Manager Updates Wizard. Click on Next when you are ready to start the installation, this will take around 30 – 45 minutes to complete so make sure you have a big enough change window for the update process.SCCM 1906 Configuration Manager Updates Wizard

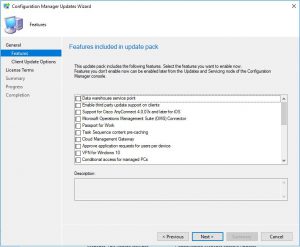

  9. On the second windows of the SCCM updates wizard, carefully choose any options / features  that you require and then click on Next.SCCM 1906 Configuration Manager Updates Wizard Options

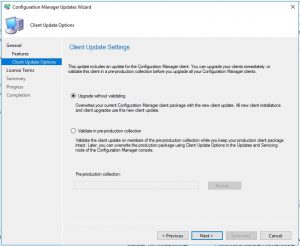

  10. Client Update Settings window allows you to choose if you would like to validate the client update on members of a Pre-Production collection so that you can test there are no issues with the update. As this is one of SmiKar’s software test environments, I am going to just Upgrade without Validating. When you are ready to proceed click on Next.SCCM 1906 Configuration Manager Updates Wizard Client Updates

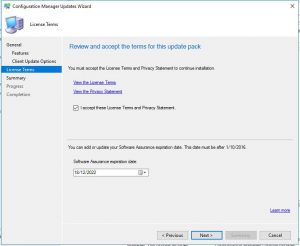

  11. We are almost ready to start the installation and upgrade to SCCM 1906. On the License Terms window, you can read the License Terms if you wish to do so, click on Next when you are ready for the next step.
    SCCM 1906 Configuration Manager Updates Wizard License Acceptance

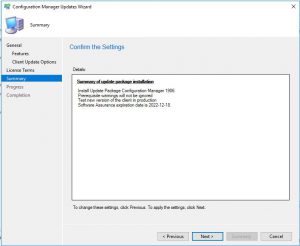

  12. Now the last step before the upgrade process starts off. On the Configuration Manager Updates Wizard Summary Window, check the settings and details you want have been selected and then finally click on Next. This will start the upgrade to SCCM 1906 so make sure you want to do this.SCCM 1906 Configuration Manager Updates Wizard Summary

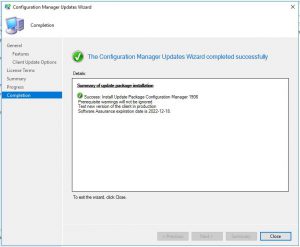

  13. The last window you can now close and the SCCM 1906 update will complete in the background.SCCM 1906 Configuration Manager Updates Wizard Completed

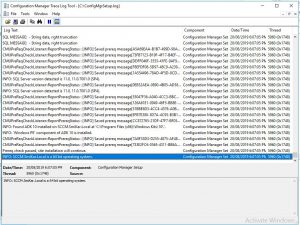

  14. Now what if you dont want to refresh the SCCM console window and wish to see more details about what is happening with the update to SCCM 1906. Well you can easily get a more detailed view of the upgrade process by going to the local C Drive of your SCCM server and opening the ConfigMgrSetup.log file. If you have Trace32 installed to read your log files, it will display this in a nice and easy to read fashion.SCCM 1906 ConfigMgrSetup Log

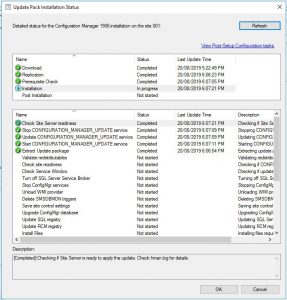

  15. Alternatively to see the update, in your SCCM Console go to Monitoring then Updates and Servicing Status, highlight the Configuration Manage 1906 update, right click and choose Show Status. In the Update Pack Installation Status window, highlight Installation and you can also see the what the SCCM 1906 update is doing.SCCM 1906 Update Status Window

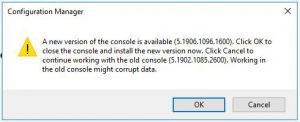

  16. Hopefully after some time (it took around 30 minutes to complete the upgrade to SCCM 1906 in our test environment), everything should have installed and updated your SCCM to the latest branche. You may get a warning that your Configuration Manager console needs to be updated as well.SCCM 1906 Console Update

  17. Close the console then reopen to update. (the SCCM 1906 update took a few minutes to complete in the lab)SCCM 1906 Console Update

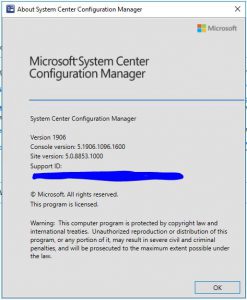

  18. Finally after quite a few easy steps, we can confirm that the SCCM environment successfully installed to the current branche, SCCM 1906.SCCM 1906 install successSCCM 1906 Installed
